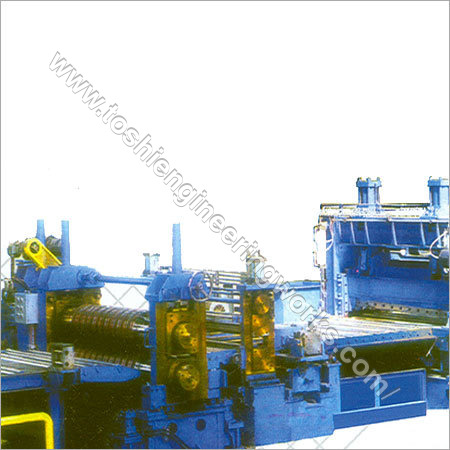

Cut To Length Machine

Cut To Length Machine
Cut To Length Machine
Product Code : CTLM 04
Brand Name : TOSHI ENGINEERING WORKS
Product Description

As an eminent enterprise, we offer an exclusive range of Cut To Length Machine that is manufactured, exported and supplied by our professionals utilizing premium quality raw materials as per the latest market trends. This machine is available in different sizes as per the application requirements of the clients. The entire range of Cut To Length Machine is highly appreciated for easy usage, accurate functionality, corrosion & chemical resistance, compact design and durability. Clients can avail this machine from us as per their needs.

Specifications & Features of Cut To Length Machines:

  • We manufacture CTL Lines 400-2500mm Width.
  • Thickness of the coil caries 0.20-20mm CRC, HR, CRNGO & SS Material.
  • Coil weight varies 3.0 tons to 30 tons.
  • Shear/Fly shear available both type. (Pneumatic clutch operated & Hydraulically operated).
  • Straightener/Rolls machine are made of Alloy steel material toughned & Machined.
  • Driven by gears or auxillery gear box.
  • Line speed up to 40 Meters per Minute.
  • Variable Speed of line as required.
  • Electrical Stopper Control Line-Optional.
  • Encoder with PLC Control base line-Optional.
  • NC Servo Motor Control Line-Optional.
  • Back trey, Conveyor or Stacking Table-Optional

Products Specification:

Model 3×1600 6×1600 8×2000 10×2200 12×2200 16×2200 20×2500 25×2500
Coil Thickness/mm 0.2-3 1-6 2-8 2-10 3-12 4-16 6-20 8-25
Coil Width/mm 1600 1600 2000 2200 2200 2200 2500 2500
Tolerance/mm ±0.5 ±0.5 ±1 ±1 ±1 ±1 ±1 ±1
Leveling Roller 15 15 13 13 11 11 9 9
Roller Shaft Diameter/mm90140155160180200230260
